Sawing Technology for Tubes and Pipe Fittings: Process Characteristics and Tool Selection

In metalworking and structural component manufacturing, the sawing process for tubes and pipe fittings exhibits unique dynamic characteristics. Unlike solid bars or conventional profiles, the cross-sectional profile and contact area of a tube are in a state of continuous change during sawing. Therefore, correctly selecting the tooth count, material, and geometric parameters of the saw blade (band saw blade) or circular saw blade, along with scientific process maintenance, are core factors in ensuring cut quality, extending tool life, and improving production efficiency.

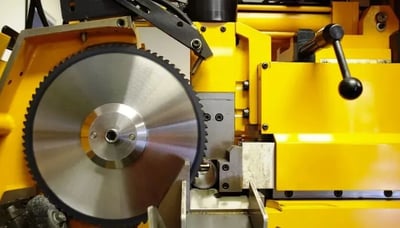

Image Source: Scotchman

I. Kinematic Characteristics and Challenges of Tube Sawing

The geometric specificity of the tube cross-section leads to instability during the sawing process, mainly manifested in the following two aspects:

Continuously Changing Wall Thickness and Contact Area:
As the saw blade or band saw blade passes through the tube, the actual wall thickness in contact with the tool is constantly changing. This means that within a single cutting cycle, the number of teeth engaged, the chip load on individual teeth, the heat generated, and the risk of system vibration all fluctuate in real-time.

Intermittent Cutting and Impact Loads:
Unlike solid bars, which provide continuous, stable cutting engagement, tube sawing involves teeth frequently alternating between "cutting in" and "cutting out." This intermittent cutting generates strong periodic impact loads and vibrations on the teeth. If process parameters are not properly matched, it can easily lead to tooth chipping or out-of-square cuts.

II. Matching Saw Tooth Parameters with Tube Specifications

Correspondence between Tooth Count (Tooth Pitch) and Wall Thickness:
Wall thickness is the primary variable for selecting the appropriate saw blade/band saw blade. The basic process principles are as follows:

Thin-walled tubes: Must use fine-tooth blades with a small tooth pitch. The goal is to ensure that a sufficient number of teeth are in contact with the workpiece at any given moment (typically at least 3 to 4 teeth, with some high-precision processes requiring 5 to 6 teeth simultaneously engaged) to prevent individual teeth from "catching" the thin wall and causing tooth breakage.

Thick-walled tubes: Must use coarse-tooth blades with a large tooth pitch. Thick-walled tubes involve a large cutting volume. A coarse tooth pitch provides larger chip gullets, ensuring that chips are quickly expelled from the cutting zone, preventing chip clogging and tool adhesion.

Application of Variable Tooth Pitch:
In band sawing, variable tooth pitch blades (mixing different tooth pitches and tooth heights within one cycle) are an effective means of addressing dynamic vibrations in tube sawing. Variable pitch helps break resonance cycles and distribute cutting forces more smoothly, thereby significantly reducing vibration during cutting and improving cut surface flatness.

Specifics of Miter Sawing:
When tubes require angular cutting (e.g., beveling for elbows), the effective wall thickness the blade encounters increases significantly. Tool selection becomes a "compromise art": the tooth pitch must be coarse enough to accommodate the large volume of chips generated at the top and bottom of the cut, yet fine enough to prevent tooth jamming during the transition through the sidewalls. Under these conditions, using a power-operated pivot-down feed system with automatic control can provide constant feed pressure, greatly reducing the risk of tooth breakage.

III. Matching Saw Tool Material with Workpiece Material

The metallurgical properties of the metal tube dictate the choice of tool material and coating. Below are typical sawing process matching solutions for common materials:

Carbon Steel (Low-carbon / Medium-carbon):
Carbon steel has good machinability.

Band Saw: Bimetal band saw blades with positive rake angles and variable tooth pitch provide ideal life and efficiency.

Circular Saw: High-speed steel (HSS) blades or blades with indexable cermet inserts can be used for higher surface finish.

Stainless Steel:
Stainless steel exhibits high strength at elevated temperatures and severe work-hardening tendencies.

Process Key Points: Teeth must remain sharp and perform aggressive, deep cuts. Absolutely avoid teeth "rubbing" or "sliding" on the material surface, as this will instantly exacerbate work hardening and lead to premature tool failure.

Tool Selection: Must use blades with large positive rake angles, appropriate feed rates, and PVD coatings (such as Titanium Nitride - TiN) to reduce adhesion and frictional heat.

High-Nickel Alloys and Titanium Alloys:
These are difficult-to-machine materials used in aerospace and specialty chemical applications, highly sensitive to heat.

Tool Selection: HSS blades wear rapidly on these materials and must be upgraded to carbide-tipped band saw blades or circular saw blades. Sawing requires high-lubricity, high-coolant-flow cutting fluids, and the feed system must be absolutely rigid.

Aluminum Alloys:
Aluminum alloys have low density and are soft but highly adhesive, prone to "chip welding" and chip gullet clogging.

Tool Selection: Choose carbide or HSS tools with coarse teeth, large chip gullets, and large positive rake angles, paired with high-flow coolant or minimum quantity lubrication (MQL) systems to prevent aluminum chips from adhering to the tool.

Process Note (On the Myth of "Universal" Blades):
In practice, there is no truly "universal" saw blade. While a compromise in tooth count might allow one blade to handle multiple materials (e.g., customizing a specific tooth count based on a 75% stainless steel + 25% carbon steel production mix), dedicated blades always significantly outperform general-purpose ones in terms of cutting speed, surface roughness, and overall tool life. In high-volume production, preparing 3 to 4 different tooth count tools for different tube specifications and switching between them is a scientific approach to reducing costs and increasing efficiency.

IV. Rigidity, Installation, and Daily Maintenance of Sawing Equipment

High-quality saw blades are only the foundation for quality sawing; the overall rigidity of the sawing system and operational procedures are equally critical to process success.

Impact of Machine Mechanical Condition:
If the saw machine itself has worn guide blocks, loose spindles, or aged bearings, the blade will experience lateral runout or drift during cutting. This physical instability directly negates the performance of high-quality tools and accelerates localized tooth fatigue.

Common Process Oversights in Circular Cold Saw Installation:
In circular cold saw operation, the following three details have a decisive impact on tool life:

Flange Cleanliness:
When changing blades, failure to completely remove metallic micro-debris between the flanges and the spindle face—even gaps of mere micrometers—can be amplified into significant face runout at the blade's outer diameter. This causes the blade to wobble during high-speed rotation, leading to abnormal wear.

Eliminating Drive Pin Backlash:
The locating pin holes on cold saw blades are typically slightly larger than the machine's drive pins. Before tightening the flange bolts, the operator must manually rotate the blade in the cutting direction until the hole walls firmly contact the drive pins, locking the positioning clearance. If this step is omitted, the blade will experience instantaneous impact from the reaction force upon engaging the tube, as the drive pins strike the clearance gap. This impact can easily cause the entire blade to shatter catastrophically.

Swarf / Built-up Edge Adhesion:
When cutting heat is too high or lubrication insufficient, tiny metal particles can adhere to the sides of the blade. As cutting continues, this "built-up edge" grows larger, causing localized thickening of the blade and resulting in sudden shuddering or jerking during cutting. If this occurs, the machine must be stopped immediately, and the blade cleaned or re-sharpened.

V. Conclusion and Economic Evaluation

In tube and pipe fitting sawing management, solely evaluating "tool procurement cost" can be misleading. Process engineers should adopt the technical-economic metric of "overall cost per cut." By precisely matching tube wall thickness with tooth count, selecting targeted carbide grades or coated tools, and optimizing parameters—even though initial procurement costs may rise—the resulting improvements in cutting speed, multiplied tool life, reduced machine downtime for tool changes, and decreased subsequent machining operations (like deburring and end-finishing) often lead to significantly lower overall industrial production costs.
